SolarvTech
Introducing Solarvtech’s groundbreaking innovation: a solar power roofing solution that integrates water heating, achieving up to 100% energy savings annually and 50% cost savings on installation compared to conventional roofing and solar panel systems. This technology has been deemed patentable by a third-party legal advisor. With minimal investment and access to initial customers, it lays the foundation for a highly scalable business model.
For over 40 years, the technology used to install solar heating collectors and photovoltaic modules has remained unchanged. Traditionally, modules are mounted on waterproof building structures using support frameworks and screw connections. Research and development efforts have primarily focused on enhancing the efficiency of the active components—solar absorbers and photovoltaic cells.
Solarvtech has developed an innovative sandwich-building material designed to rival traditional construction materials, boasting superior properties. This unique sandwich technology is lightweight yet robust, enabling prefabrication of roof and façade sections with integrated solar technology.
Additionally, we have adapted advanced adhesive fixing technology from the automotive industry, which has revolutionized car manufacturing. Our invention applies similar adhesive techniques to ensure an absolutely waterproof and structurally sound construction. This innovation reduces production costs by 40-50% compared to conventional building-integrated solar technologies, utilizing fewer materials and significantly decreasing installation time. Furthermore, it extends the lifecycle of installations up to 50 years.
The outcome of this invention is a self-supporting building material that incorporates both solar thermal and photovoltaic technologies, all prefabricated in a factory setting for seamless transport to construction sites.
Our solutions offer both land-based and floating constructions, providing maximum flexibility for diverse applications.
As simple effective long life cycle as possible
Commercial Applications of Solar Sandwich
- Zero City Farm
- Noise reduction Barriers for Airports and Highways
- Solar Field solution
- Electric transport vehicle
- Solar Sea Transporter
- Energy renovation
- Active House constructions
- Large area building integrating/ Sport arenas, Airports, Storage buildings, Markets.
- Land-or water based Solar fields.
Zero City Farm
Noise Reduction Barriers for Airports and Highways
Solar Field Solution
Electric Transport Vehicle

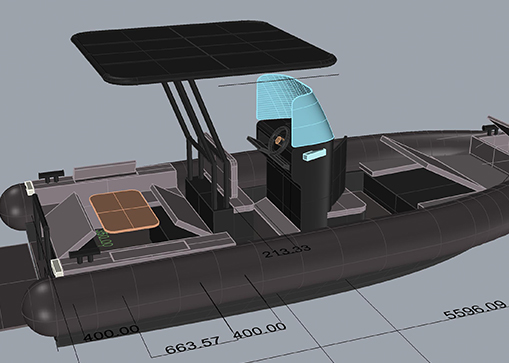

XShore Electric
XShore AB is a company specializing in building fast utility boats using electrical motors. As a charging alternative to land power and cables, XShore EPower offers the option of solar power charging which can either be mounted on the boat or on land. SolarVision is the proud supplier of this groundbreaking solution.

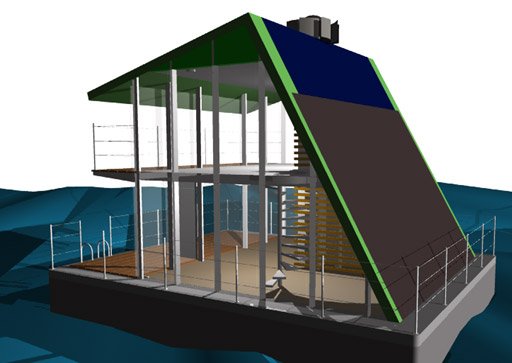

Active House Project
A small enterprise in Sweden is active in integrating sustainable technologies for homes. It likes to call its new project “active house” as opposed to passive house, as it will produce more energy than it will consume. The surplus may be used in the hybrid car for instance.
Technical Information
Sandwich from
Kenpo-Sandwich
Sandwich from
Kenpo-Sandwich
Weight 13,2 kg/m2.
U=0,162.
EIR 30.

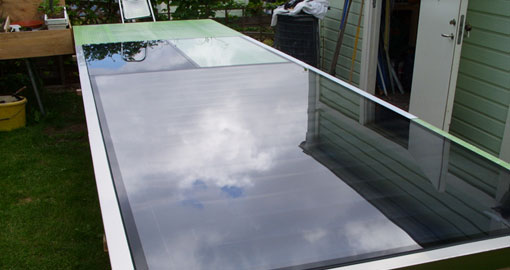

Solar collector
Solar collector
Lazerplate absorbator, Foamglass 50mm, Opti-white glass.
Production: 500 kwh/m²/year/Gothenburg.
1000-1200 kwh/m²/year/ Valencia.

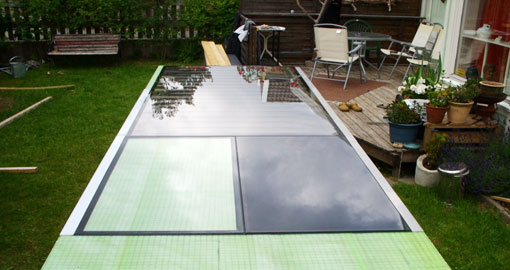

Solar Modules
Solar Modules
Parallelly connected.
Flexible modules MPP 83 w, Efficiency 16%.
Production:
150-170 kwh/m²/year/Gothenburg.
300-350 kwh/m²/year/Valencia.
Building Material
Composite from OCCT
- Strong and low weight material.
- Water and airproof construction.
- Effective insulation.
- Long Life Cycle.
- For floatin building solutions.
Composite integrated Solar Collector
- Low material cost for installation.
- High effectivity.
- Water and airproof construction.
- Effective corrosion proof.
- Long Life Cycle.
Composite integrated Solar PV Modules
- Effective installation reduces material costs.
- Water and airproof construction.
- Effective corrosion protection.
- Flexible construction for all kinds of Solar cells.
- Long Life Cycle.
Water proof construction
- Climate protective joint material.
- Effective insulation.
- Long Life Cycle.
- No frames or screws used for installation.
FAQ
Is there problems with high temperature with PV modules?
The modules are new innovative type with heat reflective materials eliminating the Efficiency loss in higher temperatures.
Is it possible to remove PV modules?
Yes, modules could be replaced similary like Ceramic plates.
How the Life cycle will be longer?
All pipe and electrical connection will be inside building protected from the Elements outside following failure and disconnection reduction to minimal. Absolutely water-and air-proof construction keep the absorbator clean inside.
What kind of PV Modules could be used?
All kind of modules; Poly, Mono, Thin Film, Organic
Why use the Sandwich when we have so much Wooden building material in Scandinavia?
We leave the trees in the Nature to do they are aimed for: Absorb CO2( Carbod dioxide) and produce O2( Oxygene). We shall work active to stop Deforesting!
